TFB-3165G

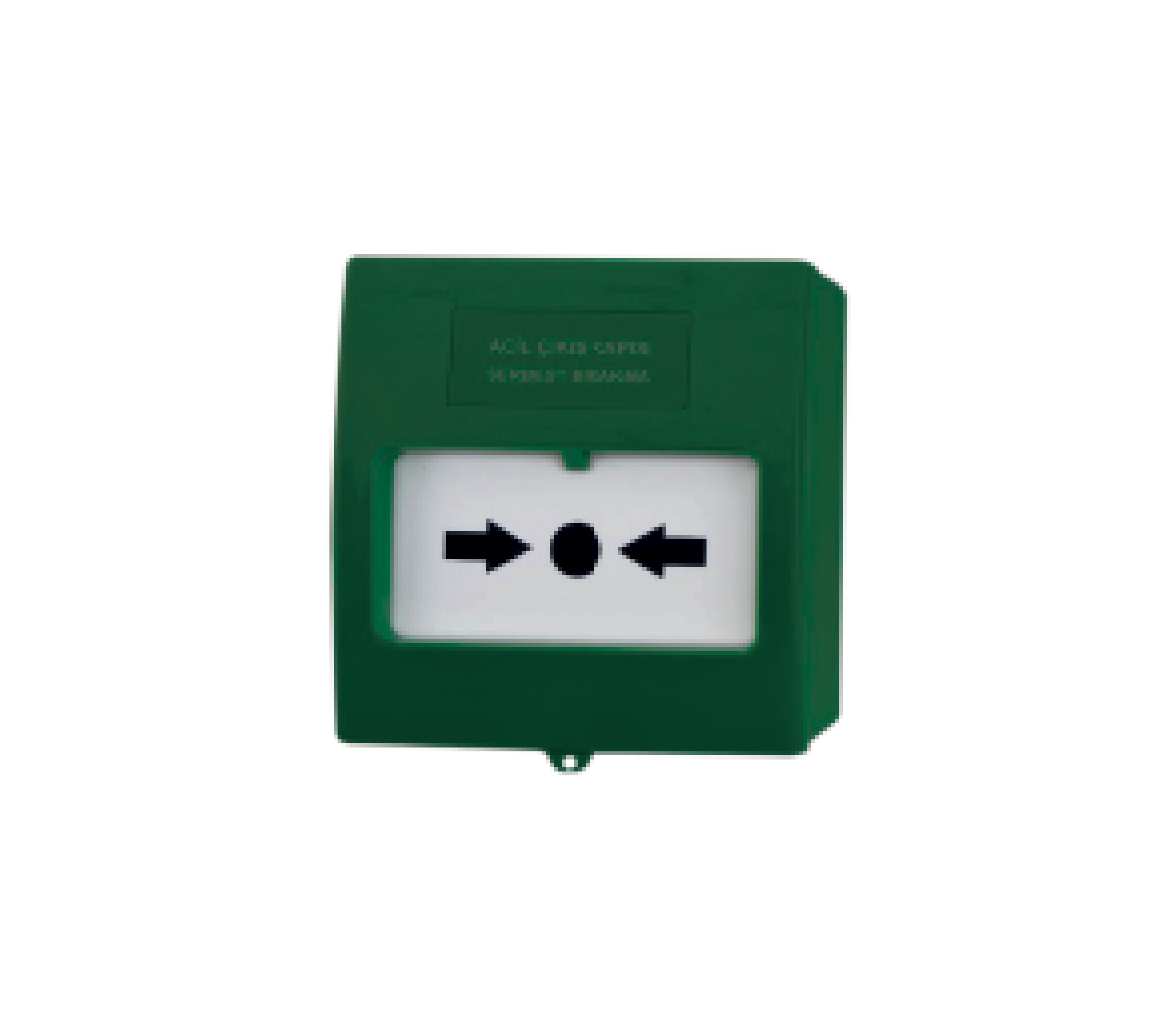

Emergency Exit Door Release Button – Green

Designed to be connected to any brand of conventional fire detection systems. Internal 470 ohm resistance allow ease of installation. It is suitable for flush and surface mounting. An optional transparent protective cover can be installed. It is easily resettable via special key. The cover is made of robust poly-carbon transparent material. It is used to prevent accidental button activation.

General Features
Technical Specifications
Downloads

Resettable Type
NC/NO Selection
Includes 470 Ohm Resistance, does not Require Additional Connection
Transparent Protection Cover can be Installed. Cover can be Sealed
Suitable for Flush and Surface Mounting
Compatible With all Conventional Fire and Theft Alarm Systems

Operating Type	A Type Manual
Resettable	Yes
Relay	NC / NO / 470R
Power	5-30 VDC
Dimensions (mm)	86x55x88mm
Weight	165gr
Color Codes	RAL 6016 GREEN
Type of Fragile Element	Resettable Polycarbonate
Operating Temperature	-10°C ~ 60°C
Humidity	≤93% RH at +40°C
Protection Class	IP30

Conventional Fire Alarm System
