TFB-3168

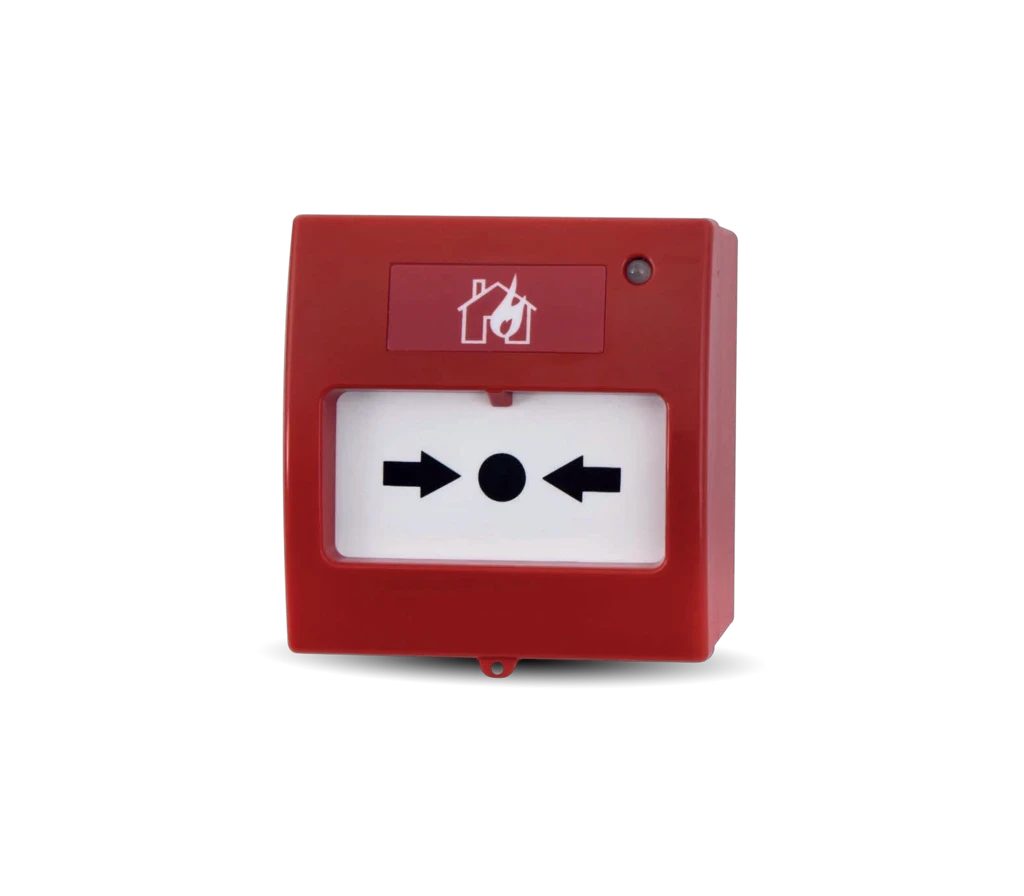

Conventional Manual Call Point with LED Indicator

TFB-3168 is an EN54-11 certified fire alarm call point with an LED indicator, compatible with all brands of conventional fire detection systems. It includes built-in 470 ohm and 100 ohm resistors, eliminating the need for additional resistor connections. The device can be easily reset using its special key. Its elegant design ensures compatibility with any environment.

  • General Features
  • Technical Specifications
  • Downloads
Standard EN54-11
Operating Type Resettable
Built-in LED Yes
Dimentions (mm) 88,50mm x 88,88mm x 55,71mm
Maximum Operating Voltage 32Vdc
Operating Temperature -10°C ~ +55°C, ≤93% @ +40°C
Conventional Fire Alarm System
PDF
TFB-3168 EN
